1.0 Introduction:

HDMI Splitter is a product which can distribute HDMI signal without loss to one or more high definition display device such as HDTV. It can optimize your home theatre system to the best effect.

HDMI signal is distributed from source device such as DVD, Satellite Receiver, Set-Top Box, DV Camera, A/V Receiver and other HDMI enabled device to high definition display device such as HDTV and HDMI Flat panel Display.

2.0 Features:

1. Fully HDMI 1.3 specification compliant. It is applicable to source device and high definition display device ,such as DVD and  HDTV which have HDMI Ports or digital ports and are compliant with HDCP protocol.

2. Support high resolutions up to 1920*1200,including 480i/p,576i/p,720i/p,1080i/p.

3. Support 30/36 dark, extended color space support, including:SYCC601、Adobe RGB、AdobeYCC601

4. Blu-ray DVD 24/50/60fs/HD-DVD/xvYCC.

5. Audio formats DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3 and DSD.

6. Extend the transmission distance and improve transmission signal.

7. Compatible with DVI by using HDMI to DVI  adapter.

8. Plug- and -play.

9. Metal casing design and overall shielding without signal interference.

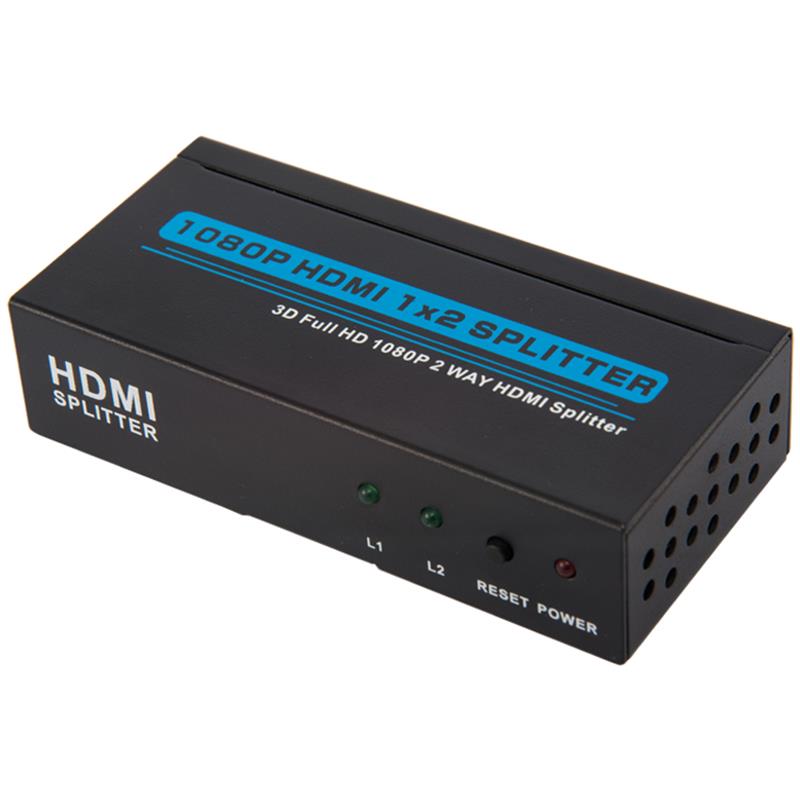

10. Led indicates signal and power mode.

11. Power supply (please refer to technical parameter).

12. Support 3D

3.0 Packaging accessories:

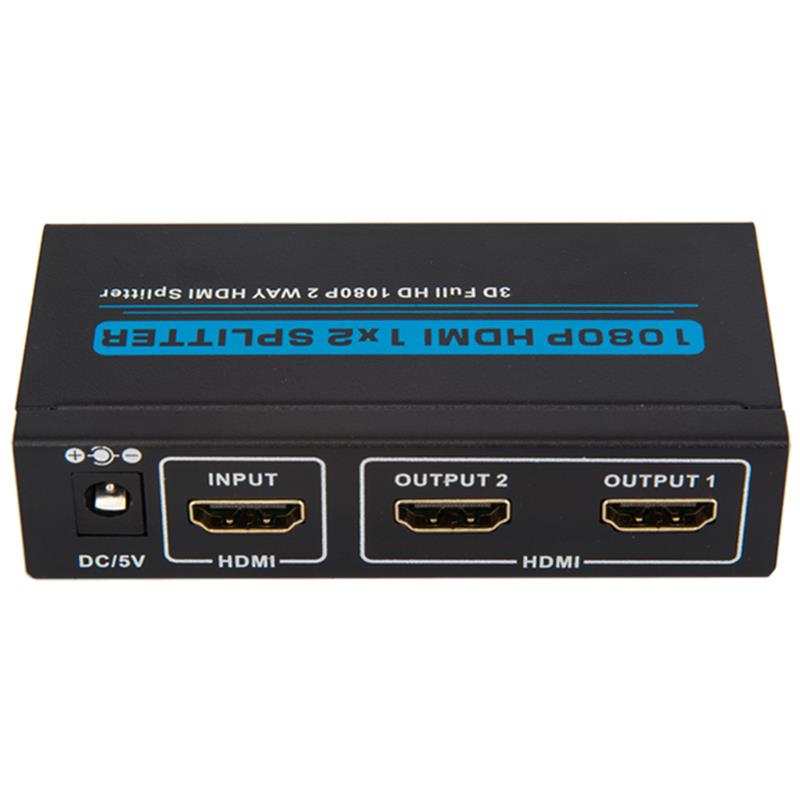

1. HDMI 1×2 Splitter------------------------------------------------1 Pcs

2. 5V DC Power Adaptor-------------------------------------------1 Pcs

3. User Manual-------------------------------------------------------1 Pcs

4.0 Technical parameters

HDMI Source Input Port-------------------------------------------------------------------1

Display Device Output Port---------------------------------------------------------------2

Source Port Connector----------------------------------------------------19 PIN HDMI.

Display Device Port Connector------------------------------------------19 PIN HDMI.

HDCP Compliant------------------------------------------------------------------------YES

Single Link Range--------------------------------------------------------------1920*1200

Input Video Signal------------------------------------------------------0.5-1.0 Volts P-P

Input DDC Signal--------------------------------------------------------5 Volts P-P(TTL)

Deep Color------------------------------------------------------------------------------36 Bit

HDMI Version-----------------------------------------------------------------------HDMI1.3

Bandwidth---------------------------------------------------------------------Up to 225Mhz

Signal Speed---------------------------------------------------------------Up to 10.2Gbps

The length of input cable-------------------------------PS4≤15M；BLUE DVD≤15M

The length of output cable-------------------------------------------------------------≤25M

The cable standard-------------------------------------------------------26AWG HDMI1.3

Vertical Frequency Range-------------------------------------------------------------60Hz

Power Consumption(max.)--------------------------------------------------------2.5Watts

Operation Temperature-------------------------------------------------------------0℃-70℃

Working Voltage-------------------------------------------------------------------------DC 5V

Power Adaptor---------------------------------------------------------------------------5V 1A

Net Weight-------------------------------------------------------------------------------0.19kg

Dimension: L*W*H(mm)---------------------------------------------------------- 84x48x20
