1.0 Introduction:

HDMI extender with a standard Ethernet TCP/IP protocol, through wireless WIFI signal transmission HD audio and video signal, at the same time, with infrared extensions to make remote control more convenient.The equipment has excellent image processing and transmission capacity, makes signal transmission more smooth and steady, is a kind of economic and efficient way of HDMI signal extension.

2.0 Features:

1. HDMI video and audio transmission via wireless WIFI, up to 100 meters;

2. HDMI 1.3 compatible;

3. In accordance with standard HDCP1.2 ,high-bandwidth digital content protection technology;

4. HD video signal resolution up to 1920x1080@60Hz;

5. Support transmitter with HDMI Loopout;

6. Special format is to compress and decompress video,effectively improve

the transfer efficiency,to ensure that the playback fluency;

7. Support external remote infrared extension, easy to operate the remote Device;

8. Able to automatically identify and configure a variety of display mode;

9. Built-in automatic balance system, the picture is fluent, clear and stable;

10. The built-in ESD electrostatic protection circuit, comprehensive security protection system;

11. Simple and convenient installation, plug and play, do not need to set up.

3.0 Packaging accessories:

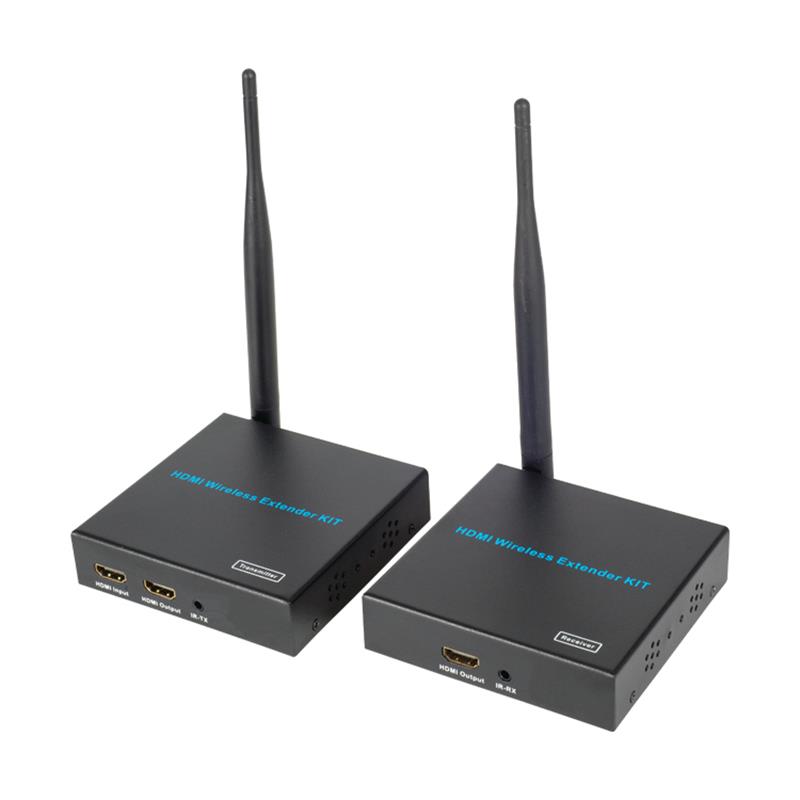

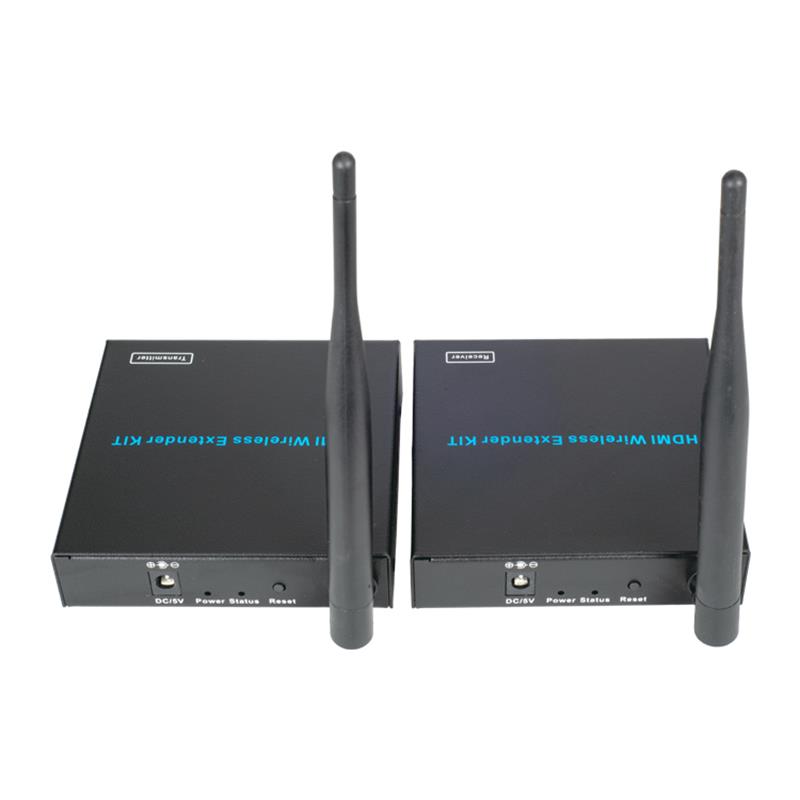

1. HDMI transmitter------------------------------------------------1 Pcs

2. HDMI receiver ---------------------------------------------------1 Pcs

3. 5V DC Power Adaptor------------------------------------------2 Pcs

4. IR RX Cable ------------------------------------------------------1 Pcs

5. IR TX Cable ------------------------------------------------------1 Pcs

6. User Manual------------------------------------------------------1 Pcs

4.0 Technical parameters:

Standards------------------------HDMI 1.3; HDCP 1.2

Compressed   format-----------------------H.264

Maximum pixel clock------------------165MHz

Maximum data rate-------------------6.75Gbps

Resolution-----------------------Max: 1920x1080p@60Hz

Connector----------------------HDMI-A

Impedance----------------------------100Ω

Recommend   HDMI maximum input/output range---------Less   than 5 meters, when 1920 x1080p @ 60 Hz

Interface----------------------3.5mm Stereo audio socket

Signal direction---------------------Unidirectional

Signal type-----------------------Digital

IR frequency------------------------20-60kHz

Radio   Frequency power------------------------13dbm

Wireless   standards--------------------802.11ac

signal   direction----------------------------Unidirectional

Radio   frequency--------------------------5.8GHz

Transmission   distance-------------------------------100M

Adapter:--------------------------------DC 5V

Power dissipation---------------------MAX 15W

Operating：--------------------- -5℃ ~ +70℃

Operating：-----------------------------5% ~ 90%

Size-------------------------100*100*25mm

Warranty----------------------1 year free warranty
